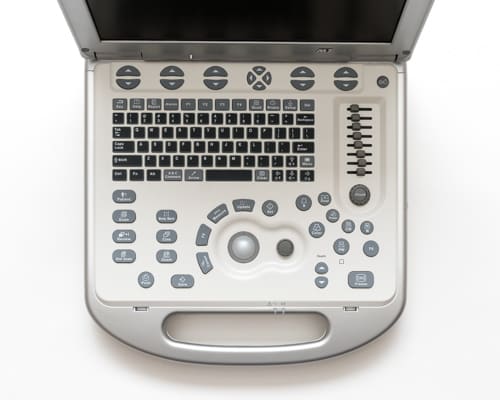

The refurbished Mindray M7 is a popular shared service portable ultrasound system. This is a laptop sized/clamshell style ultrasound machine that features advanced imaging features found in today’s mid-range portable ultrasound machines. The Mindray M7 has long been a solid choice for those looking for reliable and good image quality in a portable package.
The refurbished Mindray M7 is one of the better mid-range portable ultrasound machines due to its very good penetration and color Doppler for vascular and general imaging. The M7 has solid image quality with its 15-inch high resolution TFT LCD with a 170-degree viewing angle.
Important key features for the Mindray M7 portable ultrasound machine:
Being a shared-service system, the Mindray M7 is very versatile and covers a wide range of clinical needs such as:
This portable ultrasound machine also features technology that is suitable for cardiac applications, though it is less common.
| Active Probe Ports | 1 |
|---|---|
| Battery | Yes |
| CD/DVD-R | External |
| DICOM Options | MPPS, Print, Query/Retrieve, Store, Structured Reports, Worklist |
| Dimensions | 14 lbs, 14" x 14" x 3" |
| Ethernet | checked |
| Export Options | BMP, DICOM, JPG, RAW, USB |
| Features | Anatomical M-Mode, Auto Optimization, Color Doppler, Color M-Mode, Compound Imaging, CW Doppler, DICOM, HPRF, IMT, M-Mode, Needle Visualization, Panoramic, Power Doppler, PW Doppler, Speckle Reduction, Stress Echo, Tissue Doppler, Tissue Harmonics |
| HDD Size | 160GB |
| Imaging Modes | 2D, 3D/4D |
| Max Cine Memory | 8830 Frames |
| Max Frame Rate (FPS) | 643 |
| Maximum Depth (cm) | 30 |
| Monitor | "15"" High Resolution LCD" |
| Monitor Resolution | 1024×768 |
| PC Export Formats | AVI, BMP, JPG |
| Popular Configurations | C5-2s, L14-6s, P4-2s, V10-4s |
| Power (USA) | 100-240V, 50/60 Hz |
| Primary Applications | Breast, Cardiac, General Imaging, OB/GYN, Vascular |
| SSD/HDD | HDD |
| Touchscreen | N/A |
| Trackball/Trackpad | Trackball |
| USB Ports | 2 |
| Video and Output Options | Audio, Composite Video, DVI, Ethernet, S-Video, USB |
| Wireless | Yes |
| Year Built | 2010 – Current |
| Probe | Type of Array | Bandwidth |
|---|---|---|
| Mindray 7L4s | Linear | 4.4-13.5 MHz |
| Mindray 7LT4s | Linear | 4.8-13.5 MHz |
| Mindray C11-3s | Convex | 3.0-11.2 MHz |
| Mindray C5-2s | Convex | 3.5-5.7 MHz |
| Mindray C6-2Gs | Convex | 1.7-6.0 MHz |
| Mindray CW2s | Pencil | 2.0 MHz |
| Mindray CW5s | Pencil | 5.0 MHz |
| Mindray L12-4s | Linear | 3.0-13.0 MHz |
| Mindray L14-6Ns | Linear | 3.5-16 MHz |
| Mindray L14-6s | Linear | 5.4-16.2 MHz |
| Mindray L16-4Hs | Linear | 3.5-16.0 MHz |
| Mindray L7-3s | Linear | 2.6-8.2 MHz |
| Mindray P4-2s | Sector | 1.5-4.5 MHz |
| Mindray P7-3s | Sector | 2.0-8.0 MHz |
| Mindray P7-3Ts | Sector | 1.9-8.2 MHz |
| Mindray Sp5-1s | Sector | 1.1-5.5 MHz |
The Mindray M7 performs great in general radiology and superficial imaging. Its vascular imaging provides terrific penetration and color Doppler. The M7 is one of the best portable ultrasound machines in its price range for deep 2D penetration and color Doppler for vascular applications. Although it’s an older system, it remains very popular and can be found at a good price.
